UAX13 Auto-Auto Relay Set

The AT53010 relay set is strip mounted and intended for use in UAX13 B units.
It is intended for use on outgoing or bothway circuits to a nearby non-dependent exchange that is not using the junction as a through route to the main exchange

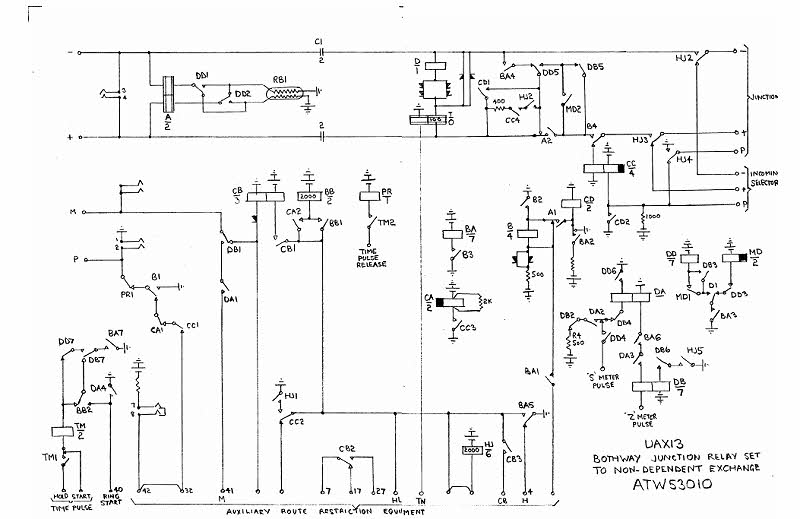

Auto-Auto Relay Set (bothway from non dependent exchange)

Show ATW53010 Circuit as a PDF (246Kb 1 Page)


Page provided by John Bathgate
