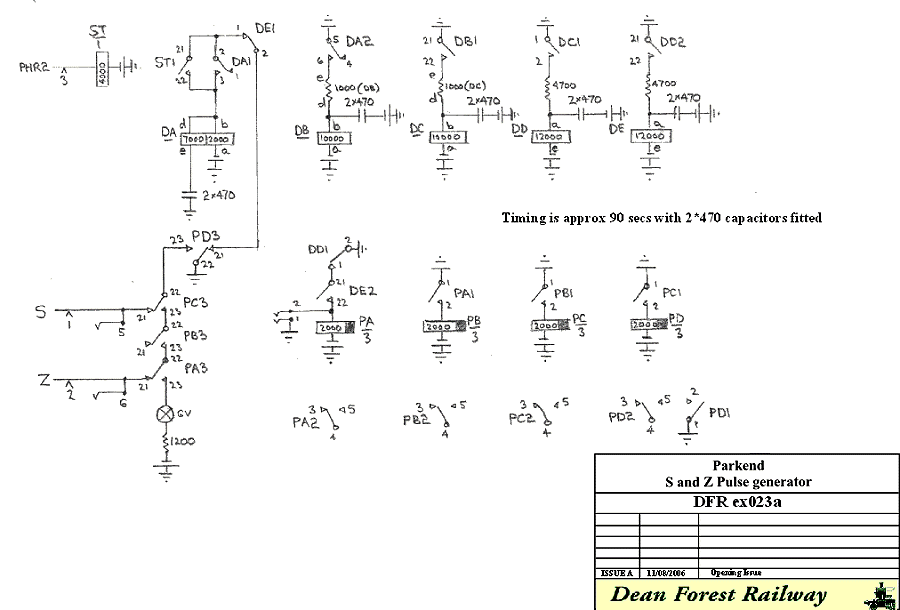

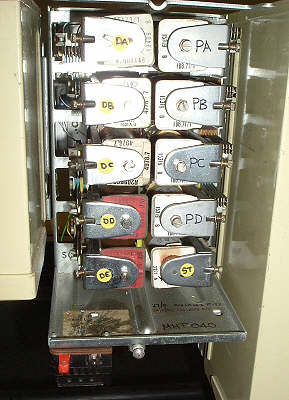

Parkend S and Z Pulse Generator
This relay set generates an S and a Z pulse approximately every 90 seconds. It is used to control the power equipment. Normally when the main rectifier is in use, it is off, although a time clock does switch it on for two half hour periods a day to keep the batteries charged. Whenever the exchange is taken into use the rectifier switches on and then remains on for several minutes after the call clears down.
