Numbering and Labelling
Cable Colour Codes
Internal Telephone Cable colour codes are based on the five colours, blue(B), orange(O), green(G), brown(BN) and slate(S).
These colours can be expanded to twenty pairs :
blue, orange, green, brown, slate,
blue/white, blue orange, blue green, blue/brown, blue/slate
orange/white, orange/green/ orange/brown, orange/slate
green/white, green/brown, green/slate
brown/white, brown slate
slate/white
These single wires are usually twisted with a second wire to form a pair. These second wires take the following colours and take the cable up to 100 pairs :
white
red
black
yellow
violet
pink
In an exchange, many circuits are three wire (eg neg, pos and P wires) and so the cable colours above can be further increased by the addition of a turquoise wire to make each pair into a triple.
Small cables are often made up with the following colours :
A wire - blue/white, B wire - white blue
A wire - orange/white, B wire - white/orange
A wire - green/white, B wire - white/green
A wire - brown/white, B wire - white/brown
Current External Quality Cables use the following 30 pair base :
blue/white, orange/white, green/white, brown/white, slate/white
blue/red, orange/red, green/red, brown/red, slate/red
blue/black, orange/black, green/black, brown/black, slate/black
blue/yellow, orange/yellow, green/yellow, brown/yellow, slate/yellow
blue/violet, orange/violet, green/violet, brown/violet, slate/violet
blue/pink, orange/pink, green/pink, brown/pink, slate/pink
where the first pair will be blue/white (B wire) and white/blue (A wire).
To increase the cable size beyond thirty pairs, several 30 (or possibly 15) pair bundles will each be wrapped in its own marker tape.
Railway Provided Cables are usually based upon the blue, orange, green , brown, slate sequence but have unpredictable variations. Some are not constructed with pairs but with quads. In a quad, each pair uses the wire opposite it in the quad to produce the pair and this reduces over hearing etc.
Line Plant
Line plant terminations in cabinets and DPs should be numbered "down". If the terminal strips are horizontal then they should be numbered from "left to right".
MDF & IDF

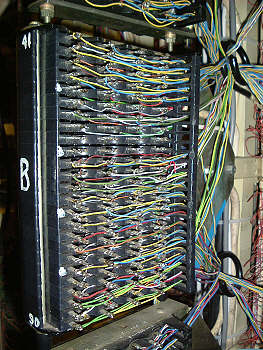

The MDF line side always numbers "down" within each vertical bar of fuse mountings. This gives each pair a "bar and pair" number, eg: B41.

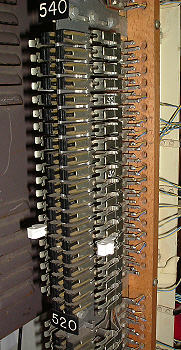

The MDF exchange side always numbers "up" within each vertical bar of protectors, heat coils and test jacks. This gives each circuit its individual number.
IDF tag blocks always number "up". However it should be noted that some blocks at Norchard exchange have been provided in the past which do not follow this convention. New work should number "up".

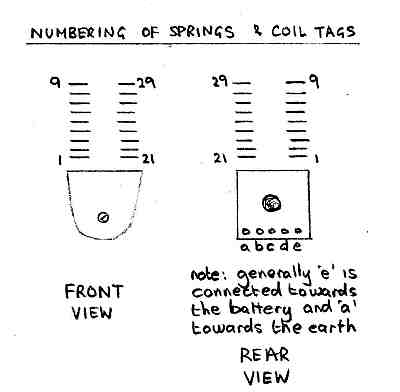

Relay Coil & Contact Numbering

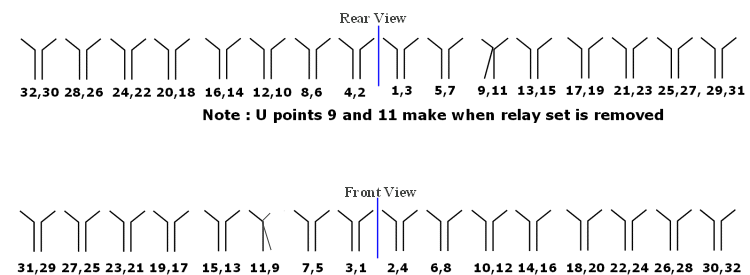

U Points
It is suggested that the following U point allocation be reserved for new work at Parkend Exchange :
1 | I/C - wire | 17 | |
2 | I/C + wire | 18 | NU Tone |
3 | Ring Start | 19 | |
4 | | 20 | |
5 | | 21 | |
6 | | 22 | |
7 | | 23 | |
8 | Dial Tone | 24 | |
9 | I/C P wire | 25 | |
10 | | 26 | |
11 | Earth | 27 | |
12 | Battery | 28 | |
13 | S Pulse | 29 | |
14 | Z Pulse | 30 | Int. Ring Tone |
15 | Release Earth | 31 | Ring Return Battery |
16 | Busy Tone | 32 | Int. Ringing Earth |
Unallocated U points can be used as required for other connections eg "line out", "prompt alarm", "deferred alarm" etc.
 |
